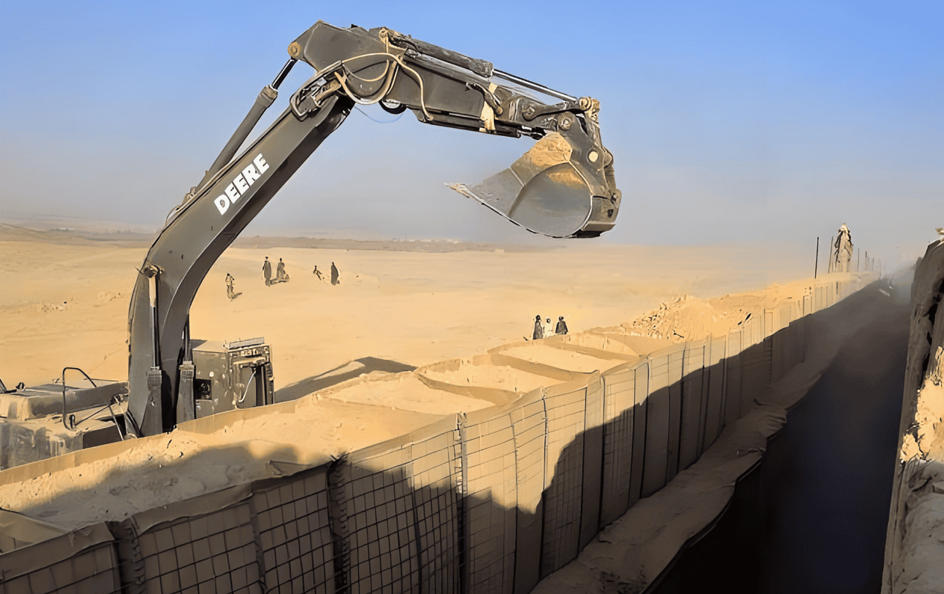

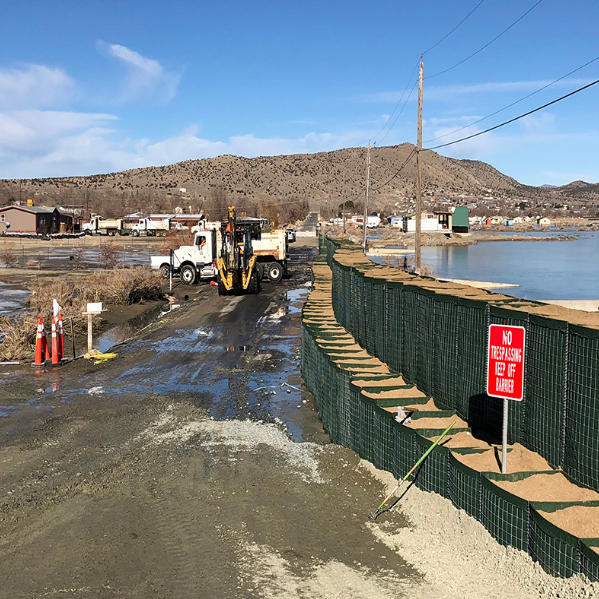

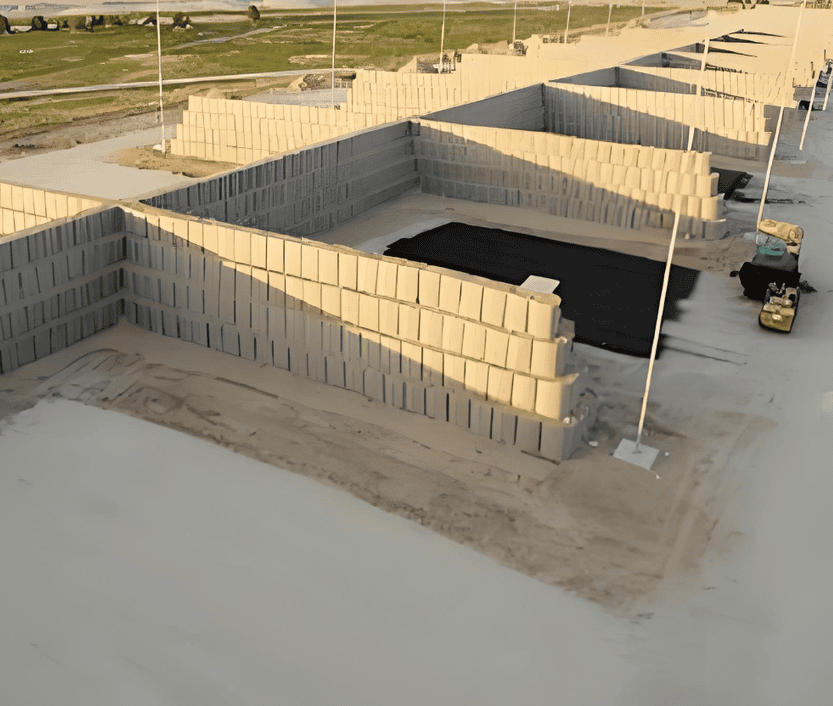

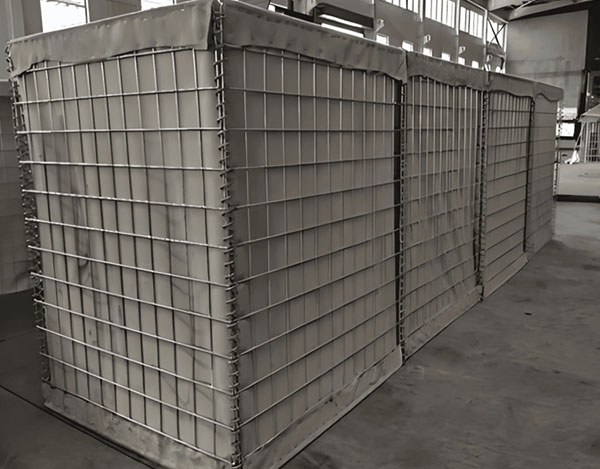

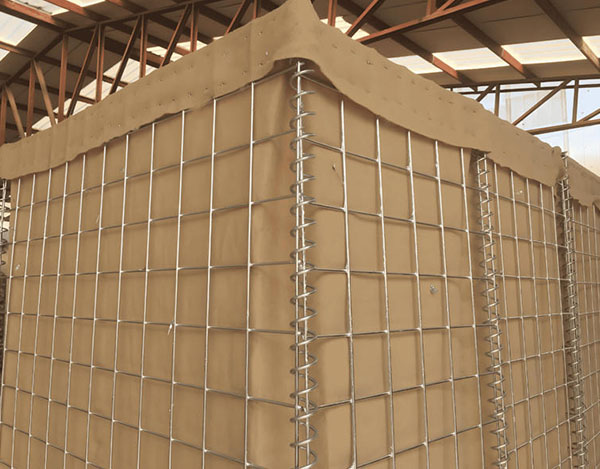

The defense barriers is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh gabion and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries.

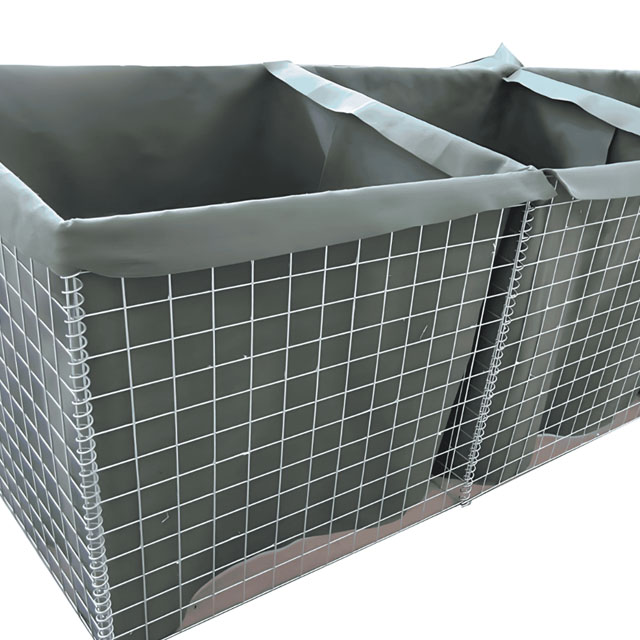

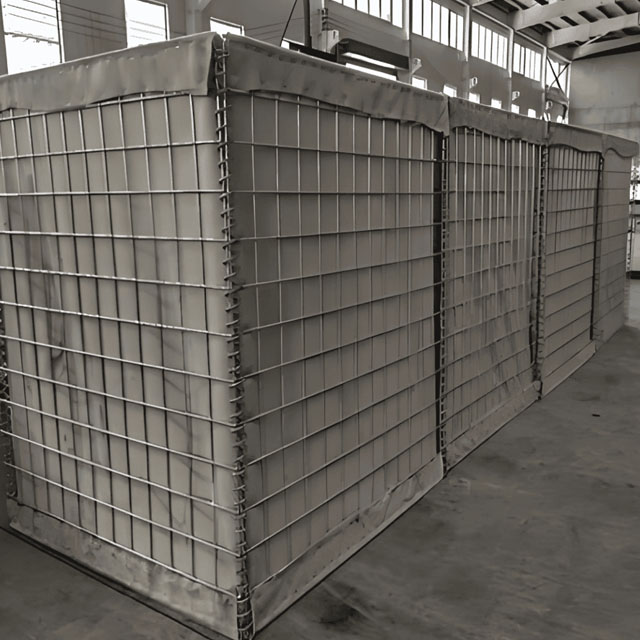

A geotextile lined unit for general use as an earth filled barrier .

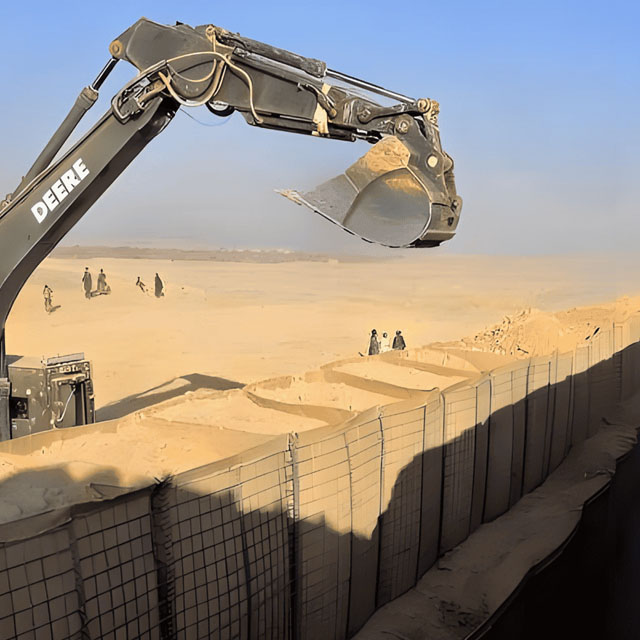

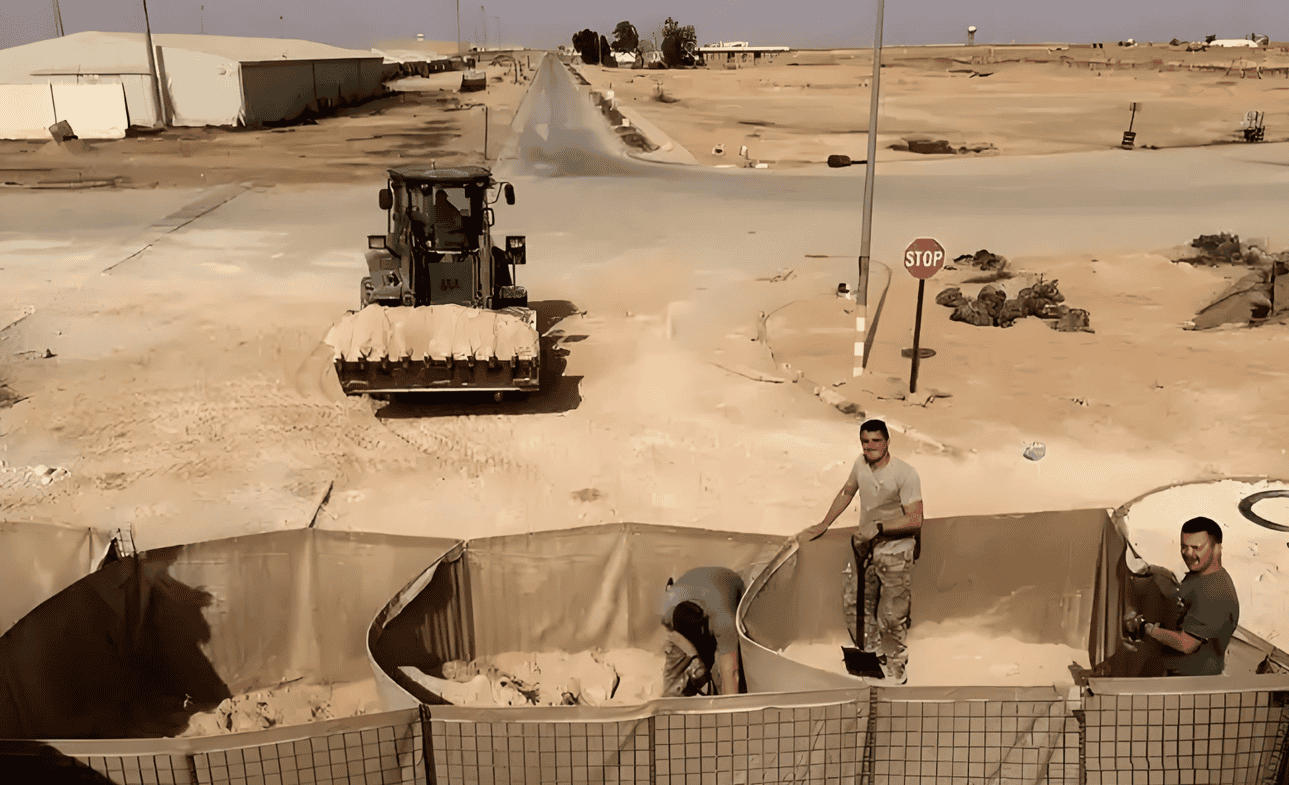

The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.

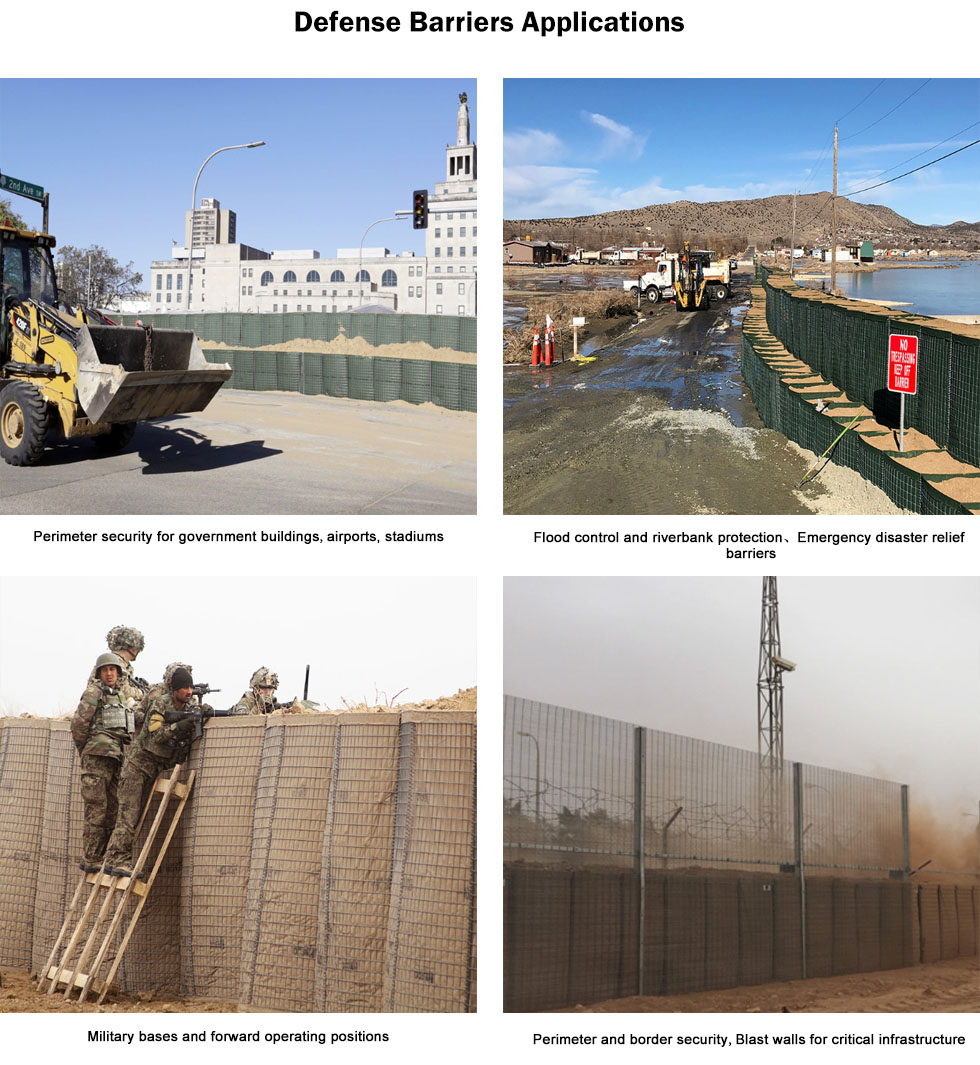

The unit fulfills a wide range of users,including the construction of protective walls and barriers.
Advanced Security Barrier Systems
Vehicle barriers, perimeter protection systems, and blast mitigation solutions engineered for critical infrastructure, transportation hubs, government facilities, and industrial environments.
A. Vehicle Barriers
Bollards
Steel, concrete, stainless steel, or composite materials.
ASTM F2656 crash ratings (K12 / K8 / K4)
Height: 30–48 inches (76–122 cm)
Diameter: 6–12 inches (15–30 cm)
Fixed or retractable installation
Government buildings, airports, stadiums, pedestrian zones, and storefront protection.
Jersey Barriers
Reinforced concrete or polyethylene materials.
Dimensions: 10 ft × 32" × 24"
Weight: 4,000–6,000 lbs
ASTM C825 impact resistance
Temporary traffic control, event security, and military checkpoint protection.
Crash Beams / Gates
High-strength steel or aluminum construction.
Vehicle resistance: 15,000–30,000 lbs
Manual, hydraulic, or automated deployment
Military bases, embassies, and nuclear facility access control.
B. Perimeter Barriers
Security Fences
Chain-link, welded mesh, palisade, and anti-climb fencing systems.
Height: 6–20 ft (1.8–6 m)
Galvanized or stainless steel
Razor wire or anti-cut mesh
Used in prisons, industrial compounds, logistics hubs, and data centers.
Concrete Walls
Thickness: 6–12 inches
Steel rebar reinforcement
Blast-rated wall systems
Military installations, secure government facilities, and high-risk infrastructure.
Hydraulic Barriers
Vehicle access control for secure facilities, military zones, industrial compounds, and critical infrastructure.
C. Natural / Blast Mitigation Barriers
Earth Berms
Compacted soil, gravel, or sandbag structures designed for blast mitigation, military storage protection, and flood control applications.
Water-Filled Barriers
Modular polyethylene or steel barriers with capacities ranging from 500–2,000 liters per segment for crowd management and temporary security deployment.
Military Defensive HESCO Barrier Specifications
| Model | Height | Width | Length | Internal Cells |
|---|---|---|---|---|
| CCD-1 | 54” (1.37m) | 42” (1.06m) | 32’9” (10m) | 5+4 = 9 cells |
| CCD-2 | 24” (0.61m) | 24” (0.61m) | 4’ (1.22m) | 2 cells |
| CCD-3 | 39” (1.0m) | 39” (1.0m) | 32’9” (10m) | 5+5 = 10 cells |
| CCD-4 | 39” (1.0m) | 60” (1.52m) | 32’9” (10m) | 5+5 = 10 cells |
| CCD-5 | 24” (0.61m) | 24” (0.61m) | 10’ (3.05m) | 5 cells |
| CCD-6 | 66” (1.68m) | 24” (0.61m) | 10’ (3.05m) | 5 cells |
| CCD-7 | 87” (2.21m) | 84” (2.13m) | 91’ (27.74m) | 5+4+4 = 13 cells |
| CCD-8 | 54” (1.37m) | 48” (1.22m) | 32’9” (10m) | 5+4 = 9 cells |
| CCD-9 | 39” (1.0m) | 30” (0.76m) | 30’ (9.14m) | 6+6 = 12 cells |
| CCD-10 | 87” (2.21m) | 60” (1.52m) | 100’ (30.5m) | 5+5+5+5 = 20 cells |
| CCD-11 | 48” (1.22m) | 12” (0.30m) | 4’ (1.22m) | 2 cells |
| CCD-12 | 84” (2.13m) | 42” (1.06m) | 108’ (33m) | 5+5+5+5+5+5 = 30 cells |
| CCD-13 | 108” (2.74m) | 42” (1.06m) | 10’5” (3.18m) | 6 cells |
Key Specifications Crash/Impact Ratings:
ASTM F2656: Rates barriers from K4 (passenger cars) to K12 (heavy trucks).
ISO/IWA 14-1: International standards for vehicle security barriers.
Applications by Threat Level Threat Type Recommended Barrier Example Use Cases：
Vehicle Ramming , Crash-rated bollards (K12) , Embassies, pedestrian malls,
Forced Entry , substations ,Blast/Explosives , Reinforced concrete walls, earth berms ,Military bases , fuel depots , Crowd Control , concerts , sports events , Coastal Erosion , Riprap (rock barriers), sea walls , Shoreline protection
Conclusion:
Defensive barriers are essential for mitigating risks ranging from terrorism to natural disasters. Selection depends on :
Threat Level: Match barrier strength to potential risks (e.g., K12 bollards for truck attacks).
Environment: Use corrosion-resistant materials in harsh climates.
Cost vs. Lifespan: Balance initial investment with long-term durability.
For maximum protection , combine physical barriers with technology (e.g., sensors, CCTV) and procedural security measures . Always comply with local regulations and consult engineers for high-risk installations .

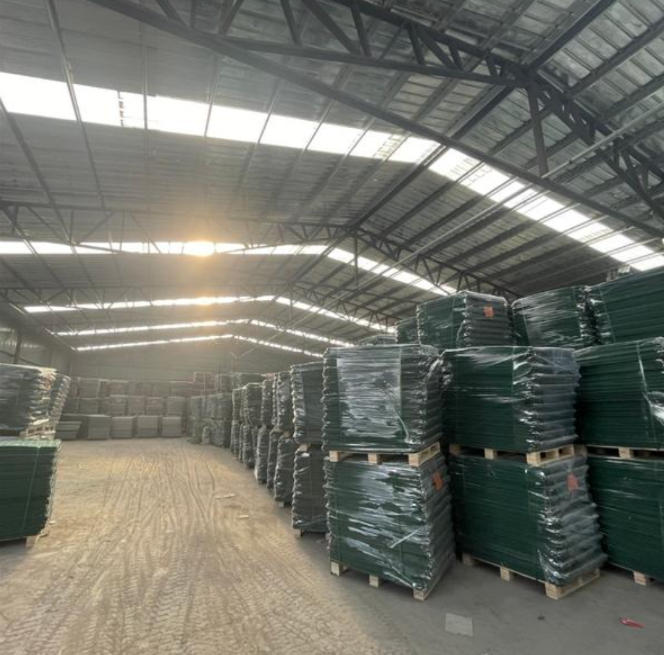

Hebei Chengchuang maintains strict quality control throughout the manufacturing process, from raw materials to finished products, including packing and loading. Three dedicated quality inspectors ensure all goods meet specifications before shipment. Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.
