The military hesco barrier mainly used in the army and related departments. Some used in the camping, and some used in the war to protect the people . The geotextile color usually is gray or khaki, so that it’s better to hide.

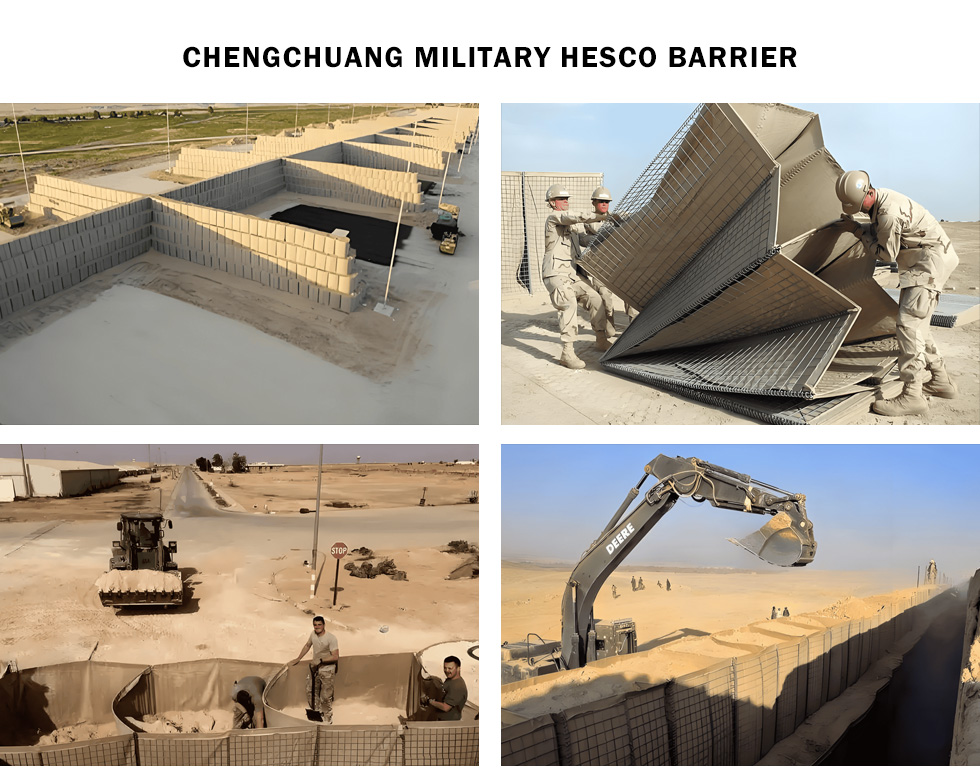

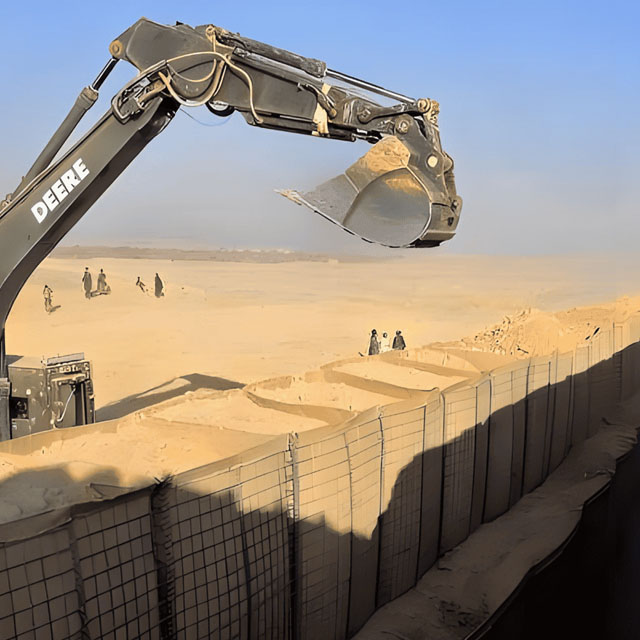

Environment is that of a Military defence wall, used to protect personnel and equipment from the effects of weapons and to increase security around a perimeter. For maximum strength and ease of construction, defence walls are generally constructed from multiple courses, and in a pyramid configuration.

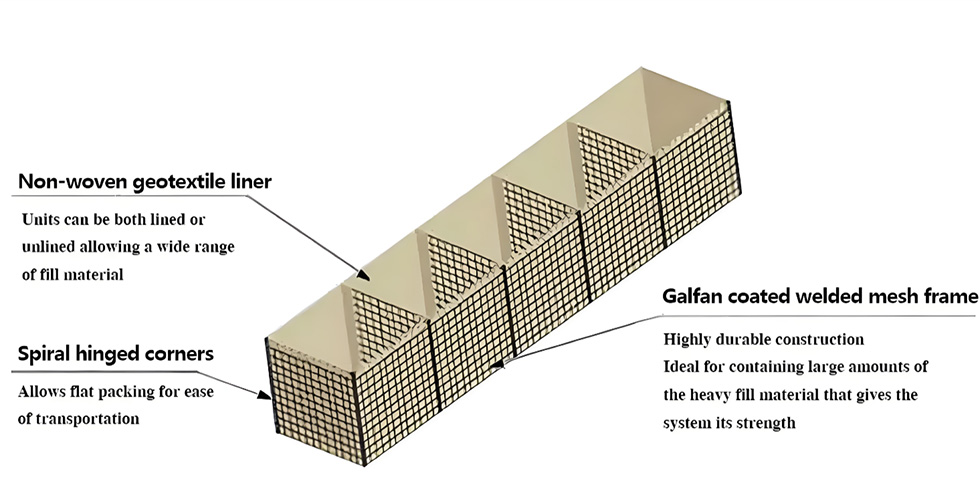

The mesh framed cell must have a cloth lining emplaced on the inner sides of the wall frame. The cloth lining allows the cell to retain a filling material such as sand or gravel or earth. The liner textile should be of heavy duty non-woven geotextile with a high UV resistance and fire inhibitor. The top textile cloth lining must be secured with rust protected staple material in at least two layers and bottom layer must also be secured with at least one layer of staple material.
The military hesco barrier Linking system：
The linking materials e.g Joining pin, Hog ring, coil ring etc. must be made of same high tensile rust protected alloy materials of wire mesh.Linking system of DB should be flexible enough so that DB can be easily placed on any curved section of DB construction site.
Military Defensive HESCO Barrier Specifications
| Model | Height | Width | Length | Internal Cells |
|---|---|---|---|---|
| CCD-1 | 54” (1.37m) | 42” (1.06m) | 32’9” (10m) | 5+4 = 9 cells |
| CCD-2 | 24” (0.61m) | 24” (0.61m) | 4’ (1.22m) | 2 cells |
| CCD-3 | 39” (1.0m) | 39” (1.0m) | 32’9” (10m) | 5+5 = 10 cells |
| CCD-4 | 39” (1.0m) | 60” (1.52m) | 32’9” (10m) | 5+5 = 10 cells |
| CCD-5 | 24” (0.61m) | 24” (0.61m) | 10’ (3.05m) | 5 cells |
| CCD-6 | 66” (1.68m) | 24” (0.61m) | 10’ (3.05m) | 5 cells |
| CCD-7 | 87” (2.21m) | 84” (2.13m) | 91’ (27.74m) | 5+4+4 = 13 cells |
| CCD-8 | 54” (1.37m) | 48” (1.22m) | 32’9” (10m) | 5+4 = 9 cells |
| CCD-9 | 39” (1.0m) | 30” (0.76m) | 30’ (9.14m) | 6+6 = 12 cells |
| CCD-10 | 87” (2.21m) | 60” (1.52m) | 100’ (30.5m) | 5+5+5+5 = 20 cells |
| CCD-11 | 48” (1.22m) | 12” (0.30m) | 4’ (1.22m) | 2 cells |
| CCD-12 | 84” (2.13m) | 42” (1.06m) | 108’ (33m) | 5+5+5+5+5+5 = 30 cells |
| CCD-13 | 108” (2.74m) | 42” (1.06m) | 10’5” (3.18m) | 6 cells |
Key Specifications Crash/Impact Ratings:
ASTM F2656: Rates barriers from K4 (passenger cars) to K12 (heavy trucks).
ISO/IWA 14-1: International standards for vehicle security barriers.

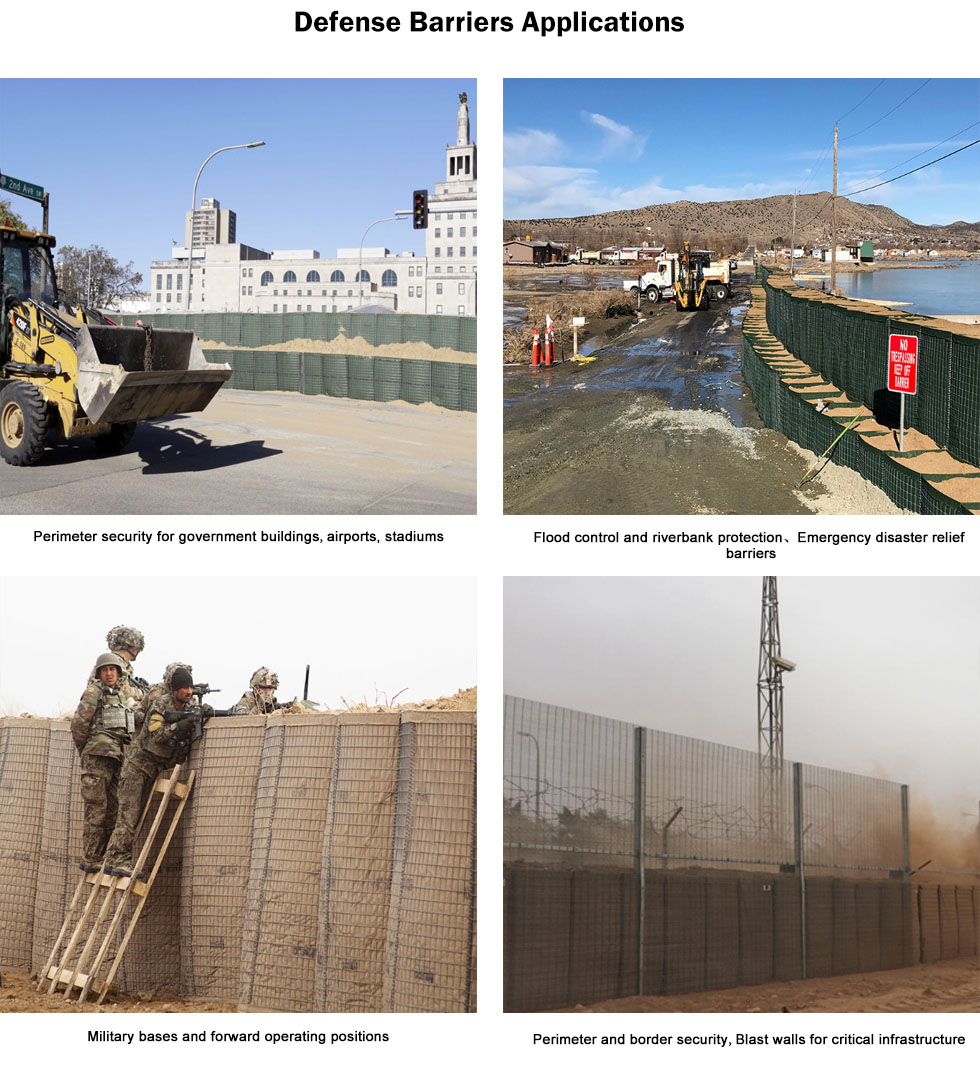

Applications by Threat Level Threat Type Recommended Barrier Example Use Cases：
Vehicle Ramming , Crash-rated bollards (K12) , Embassies, pedestrian malls,
Forced Entry , substations ,Blast/Explosives , Reinforced concrete walls, earth berms ,Military bases , fuel depots , Crowd Control , concerts , sports events , Coastal Erosion , Riprap (rock barriers), sea walls , Shoreline protection
Conclusion:
Defensive barriers are essential for mitigating risks ranging from terrorism to natural disasters. Selection depends on :
Threat Level: Match barrier strength to potential risks (e.g., K12 bollards for truck attacks).
Environment: Use corrosion-resistant materials in harsh climates.
Cost vs. Lifespan: Balance initial investment with long-term durability.
For maximum protection , combine physical barriers with technology (e.g., sensors, CCTV) and procedural security measures . Always comply with local regulations and consult engineers for high-risk installations .
